□PB series

Spacer for soldering

800x514 xpb

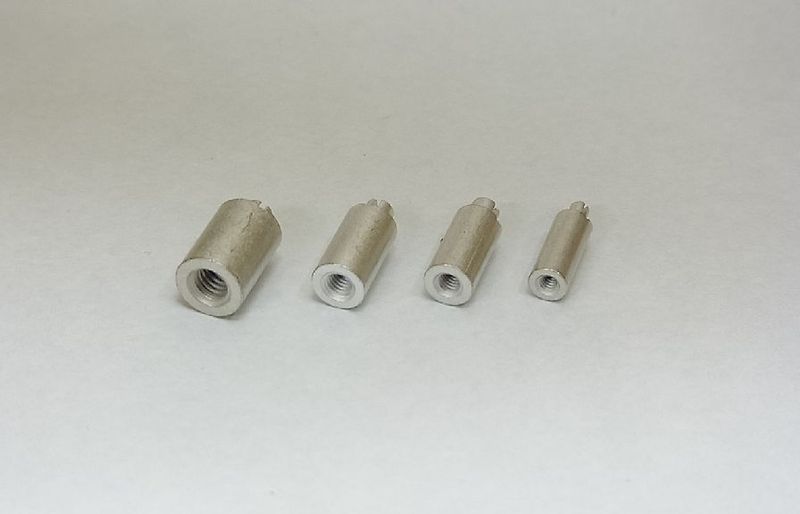

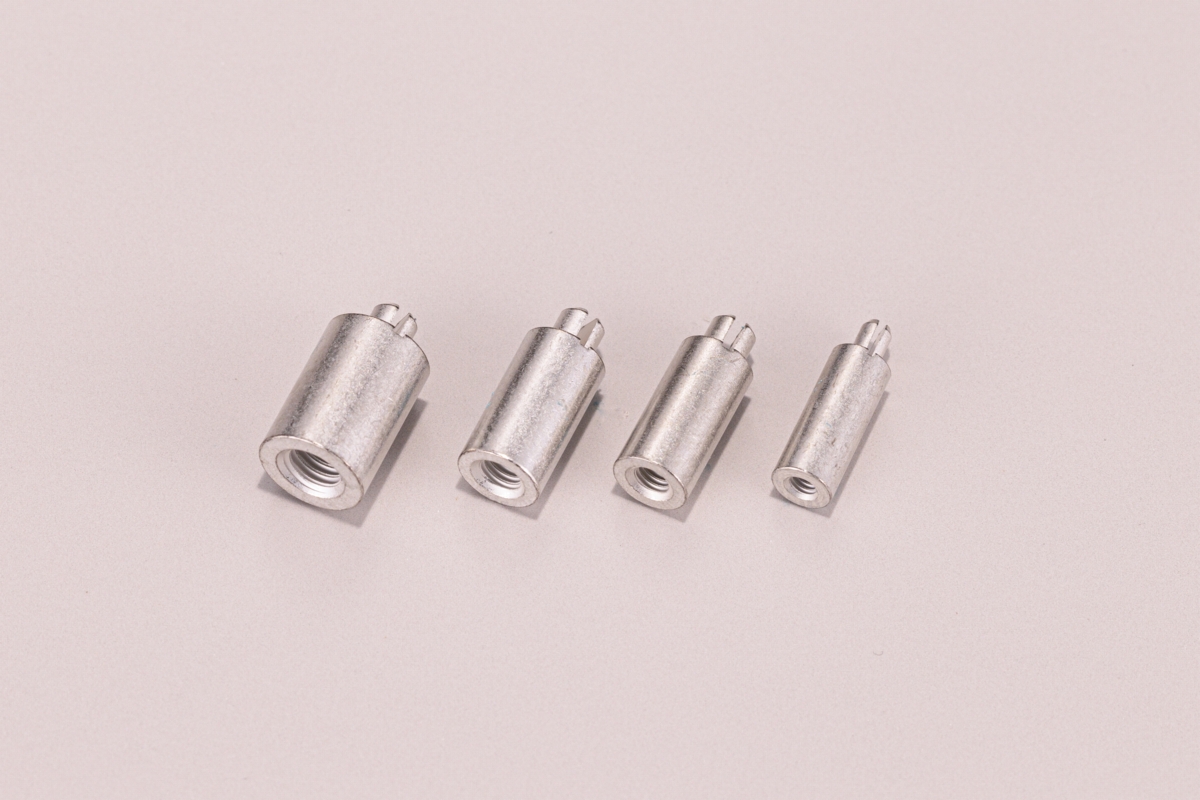

  • This spacer is used for soldering on one side.

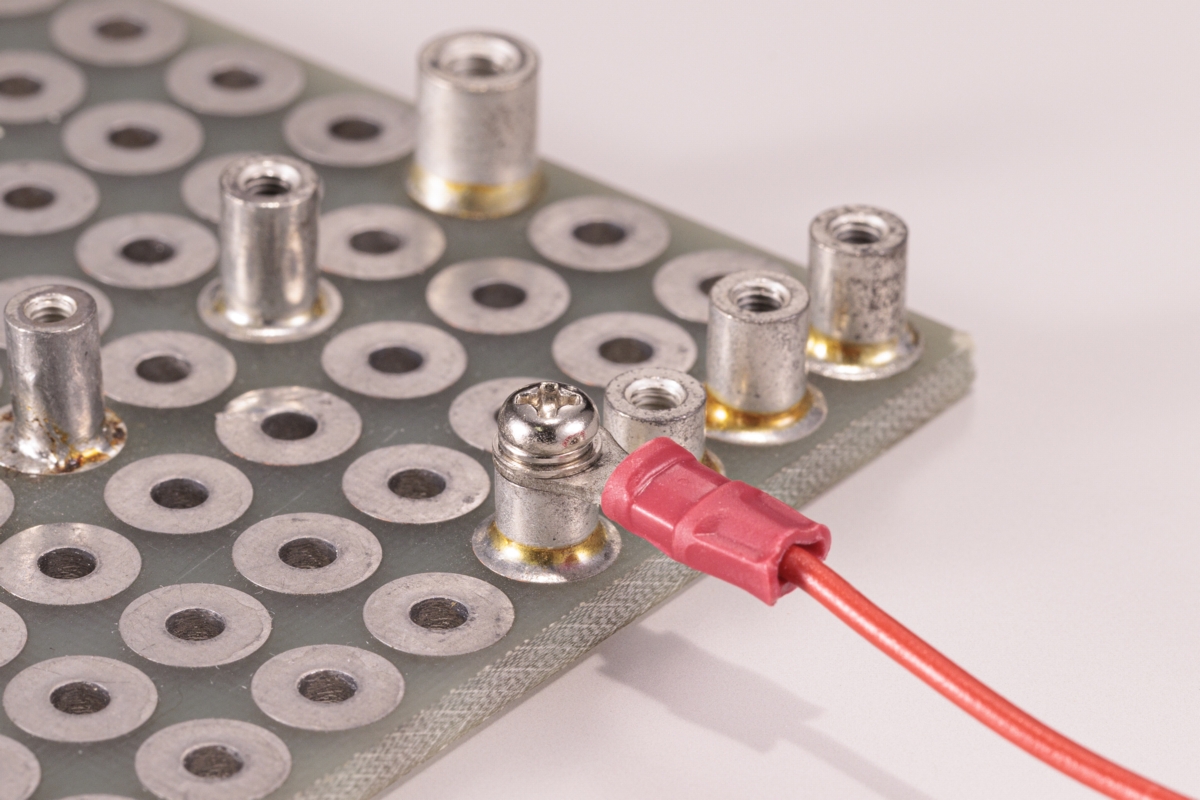

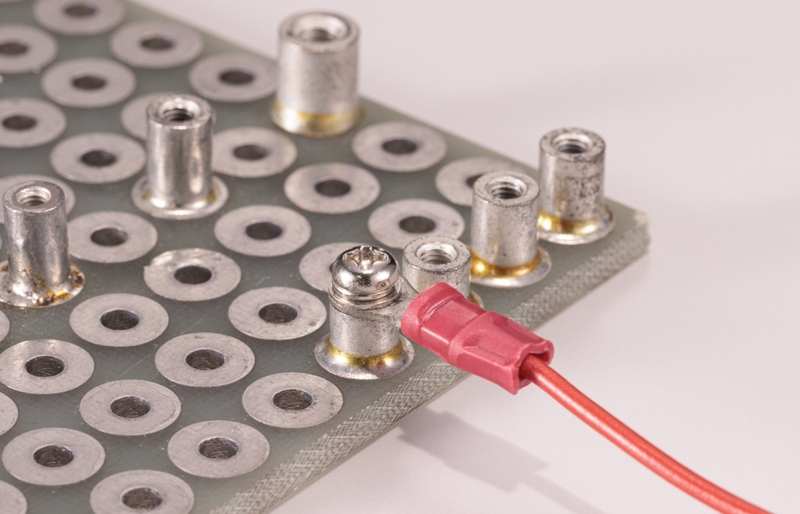

  • By fitting a crimping terminal to an electric wire,
  • and power can be supplied.

●This spacer is used for soldering on one side.

●By fitting a crimping terminal to an electric wire, power can be supplied.

●Material : Brass

●Finish : Tin plating over nickel base

●Rated current

  2PB series    : 20A

  2.6PB series : 20A

  3PB series    : 30A

  4PB series    : 30A

■Dimension

  2PB series    :  through hole of φ2.0(+0.1, -0), land diameter of φ5 or over

  2.6PB series :  through hole of φ3.0(+0.1, -0), land diameter of φ6 or over

  3PB series    : through hole of φ3.0(+0.1, -0), land diameter of φ6.5 or over

  4PB series    :  through hole of φ3.0(+0.1, -0), land diameter of φ8 or over

■Tightening torque

  2PB series    :  1.5kgf-cm(14.7N-cm) or less

  2.6PB series :  4kgf-cm(39.2N-cm) or less

  3PB series    :  6kgf-cm(58.8N-cm) or less

  4PB series    :  6kgf-cm(58.8N-cm) or less

■Instruction of use

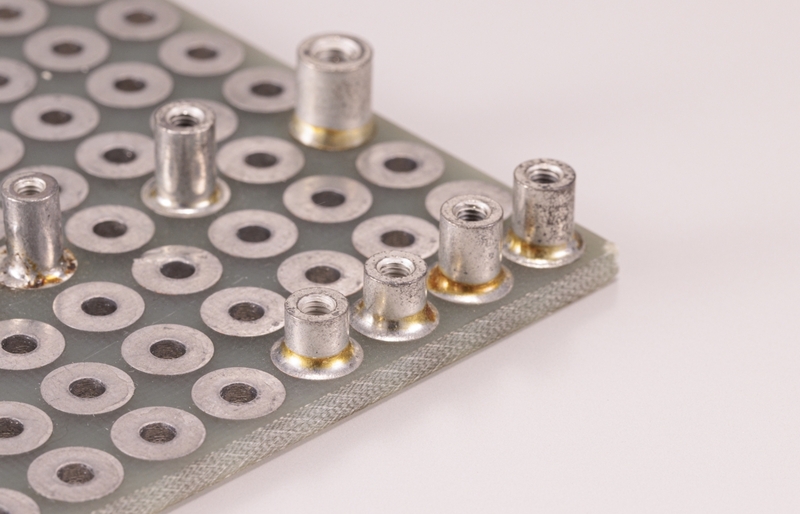

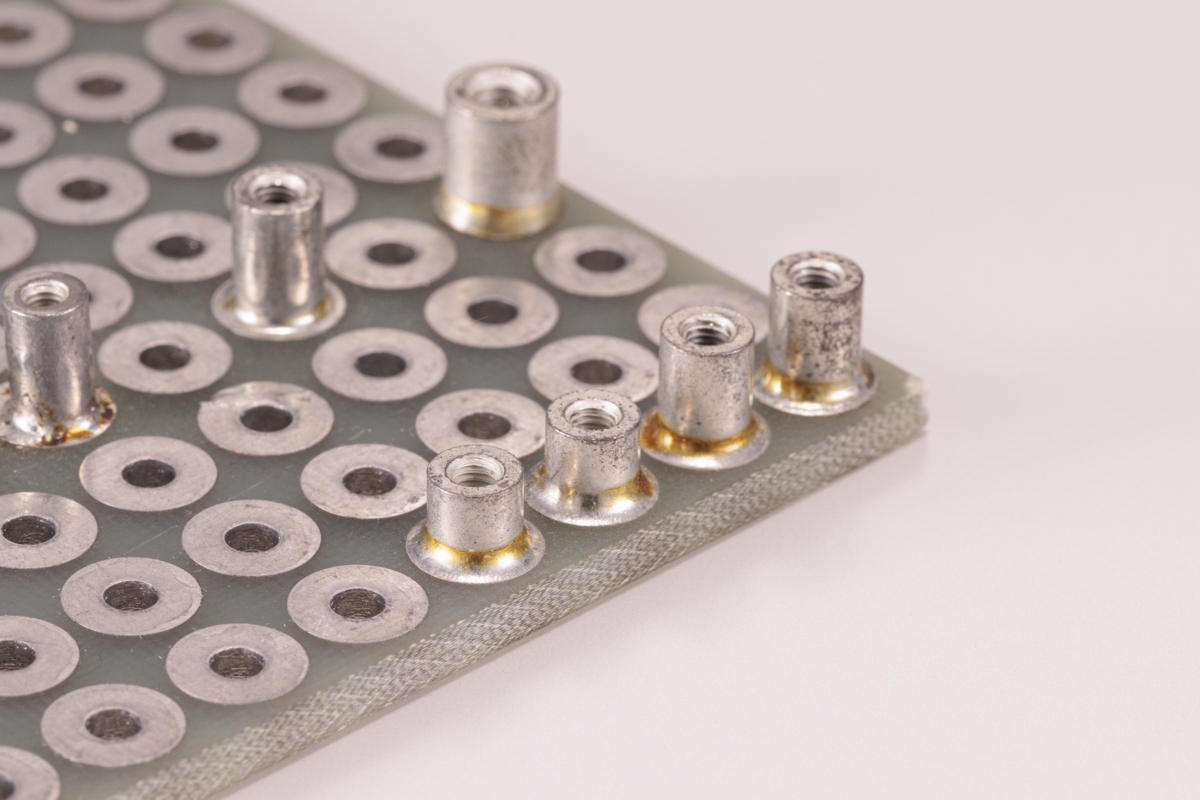

  ●The use of this product is limited to a through hole board.(This product cannot be used for a one-sided board.)

  ●Please confirm that solder is securely raised to the part face.(If not, the tightening torque described above will not be guaranteed.)
